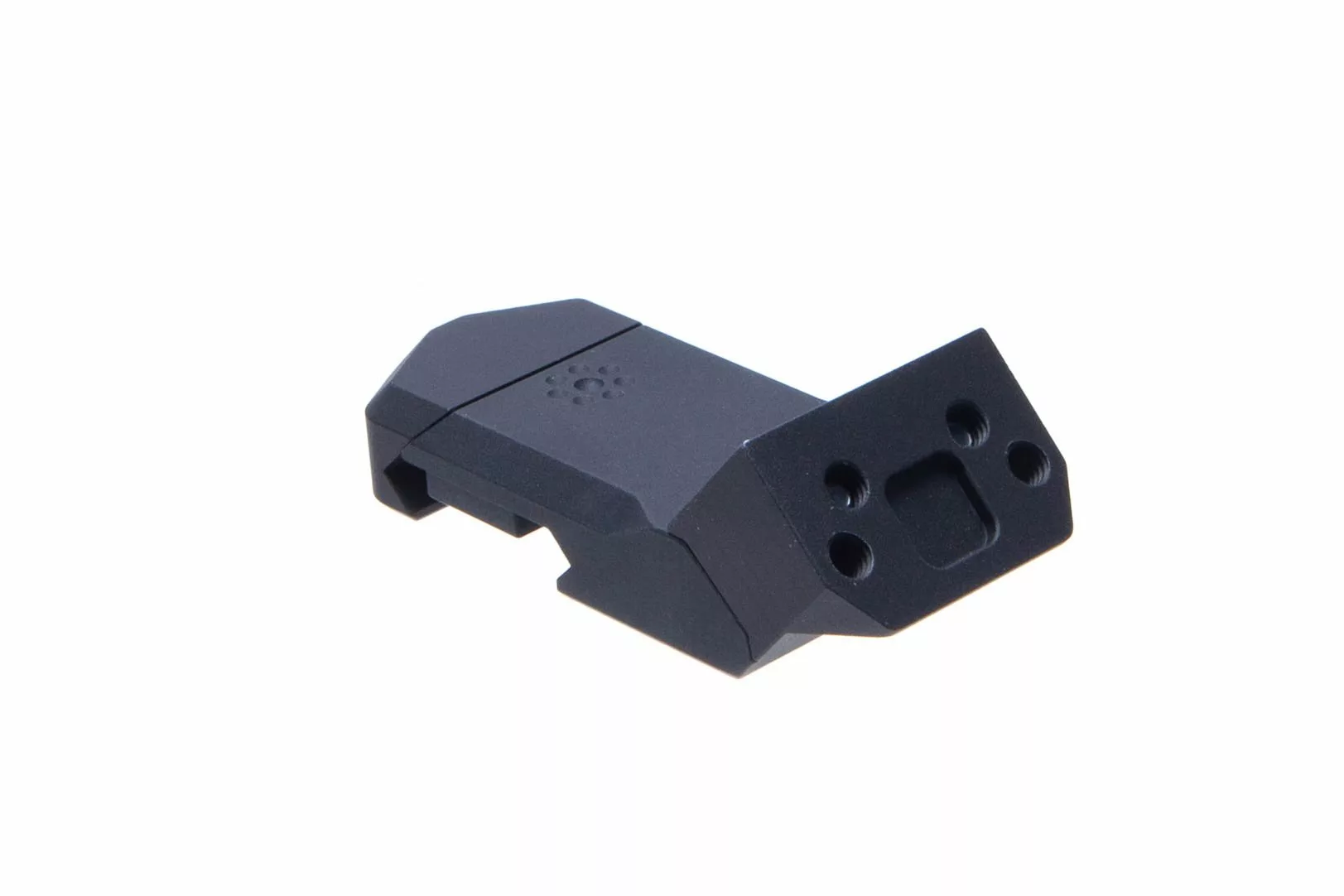

Arisaka Offset Optic Mount Base
The Arisaka Offset Optic Mount is a modular mounting solution that allows the user to select a 35 or 45 degree offset position for a red dot sight without requiring additional components. The 35 degree position brings the red dot sight up closer to slimmer, smaller scopes, while the 45 degree position provides additional clearance around wider turrets or larger, higher magnification scopes. The Arisaka Offset Optic Mount is designed to be attached to the top Picatinny rail of an AR15 rifle. When the rifle is canted to make use of the offset red dot sight, the optic remains centered over the bore and maintains a lower 1/3 co-witness height. The base and optic plates can be reversed, allowing for use on the left or right side.
Features
- Base ONLY, Plates Sold Separately
- 6061-T6 aluminum
- MIL-A-8625 Type III hard coat anodized.
- Weight: 1.9 oz without optic.
- Length: 1.0″ for the base, which occupies three Picatinny slots (twin recoil lugs and clamping screw).
- Height: The base sits 0.180″ above the surface of the Picatinny rail.
- Made in the USA
Item Number: OOM-BASE
