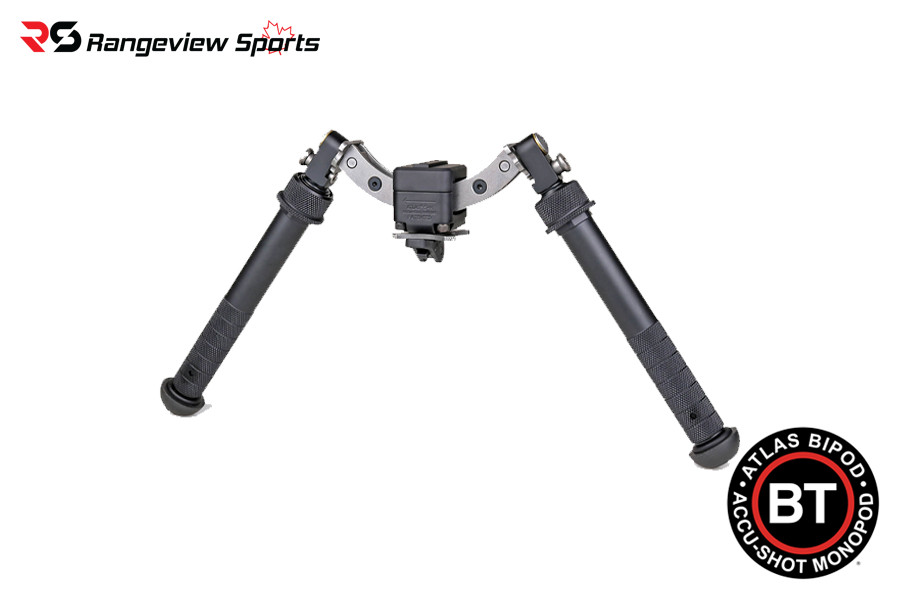

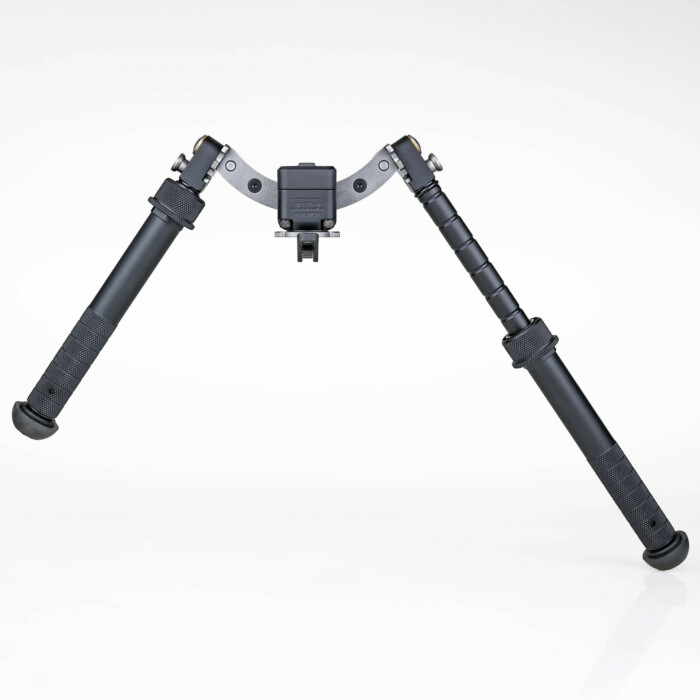

BT Atlas BT35-NC: 5-H Atlas Bipod – No Clamp
Since B&T Industries introduced the Atlas Bipod in 2006, the shooting community found a usefulness in its patented, novel features. We began receiving requests for a “bigger,” “heavier,” “stouter” bipod with the same features.
The BT35-NC 5-H Atlas Bipod “No Clamp” has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires the 5-H-ADM Lever or will mount directly to our BT19 AI Spigot. *See below for other mount compatibility specifications.
It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only.
- Height Range: 4.8 – 10″ (6.6” at 90°)
- Pan: 30 degrees
- Cant: 30 degrees
- Pan and Cant can be locked out at top dead center

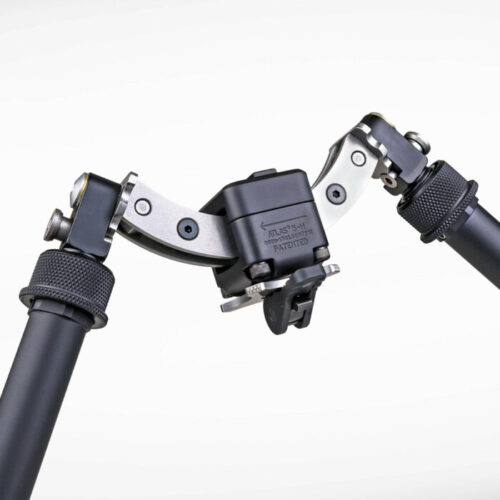

- Pan and Cant Tension Wheel has Detent adjustability and Cam-Lock
- Position Button 0.5″ diameter

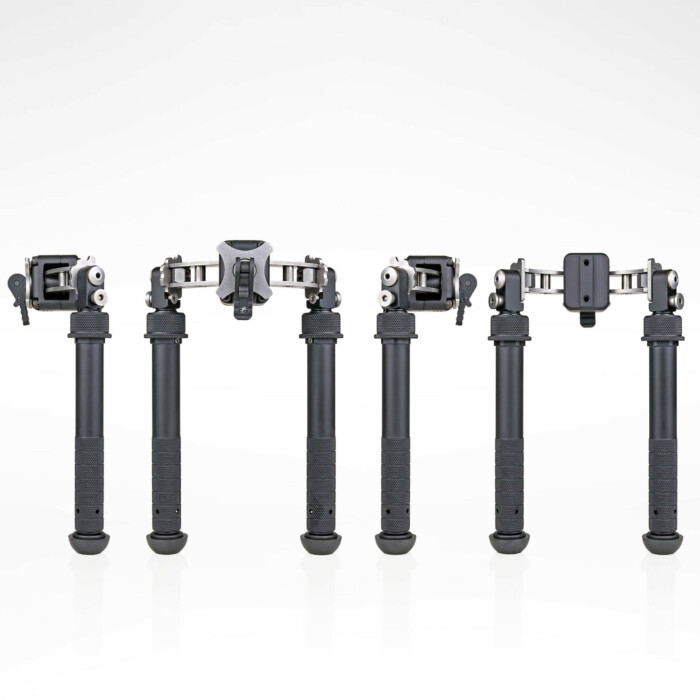

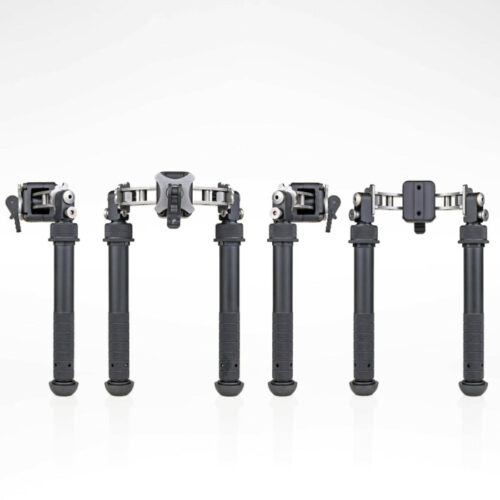

- 5 leg positions: 0, 45, 90, 135 & 180 degrees
- Non-Rotating Legs: outer leg does not rotate around inner leg
- Weight: 25.74 ounces approx.
- Footprint: 14.5–19.5″
Item Number: BT35-NC
