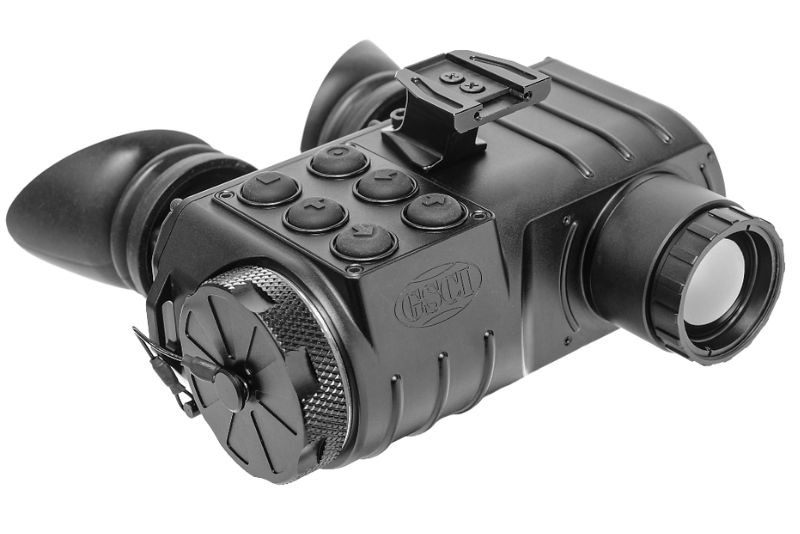

GSCI Lightweight Thermal Goggles
*** GSCI optics are special order items. Please allow 2-3 months for delivery. Time frame may be sooner depending on stock at the distributor so contact us prior to purchasing ***
The UNITEC-G64 is the thermal imaging goggle system designed for all categories of customers. It has a full-size ergonomic and tactile keypad, hard-anodized aluminum body, and superb optics. Its unbeatable real-life performance is complemented by best-in-class battery life. Features include fully waterproof design, precisely machined body and outstanding build quality. The UNITEC-G64 is perfect for 24/7 observation and detection for any purpose (wildlife, perimeter security, outdoor activities).
- Auto-NUC FPA: 640×480
- 50Hz Refresh Rate
- Human Detection Range: up to 830m
- Optional Built-In Video Recorder
- Up to 8 Hours Battery Life
Features
- High-Resolution Uncooled FPA with Auto-NUC: 640×480
- Fast Refresh Rate: 50Hz
- Quality and “Fast” Low-F-Number Germanium Lenses
- Ultra-Low Power Consumption
- Optional Built-In Video Recorder
- WDR and DDE Features for Image Enhancement
- Can be Mounted on Head Gears and Helmet Mounts
- Stadiametric Rangefinder (SRF)
- Stow Safety Feature (SSF)
- Completely Silent System Operation
- Interchangeable Optics
- Precision-Machined Rugged Aluminum Body
- Video-out for External Display and Recording
- High-Resolution Colour AMOLED Displays 800×600
- 24-hour Operation
- Manual and Automatic FPA Sensitivity Adjustment
- Manual Display Brightness Adjustment
- Black Hot / White Hot Polarity Control
- Universal Power Solution: AA, USB-powered, etc.
- Complete Dust– and Waterproof Protection
- Made in Canada. Available for Worldwide Export
- 7-Year Manufacturer’s Warranty
Specifications
| Optical Magnification | 1X |
| Objective Lens System | 25mm |
| Field of View | 24.5°x18.5° |
| Focusing Range | 0.5m .. Infinity |
| Eyerelief | Min. 20mm |
| FPA Type | Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation) |
| FPA Resolution and Pitch | 640X480, 17μm |
| FPA Sensitivity (NETD) | <50mK |
| FPA Refresh Rate | 50Hz |
| Digital Zoom | 1X, 2X, 4X, 8X |
| Internal Display | Full Size: 0.5-Inch Diagonal, Dual-AMOLED, Colour, 800×600 |
| Imaging Modes | Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes |
| Digital Passive Stadiametric Rangefinder (SRF) | Yes |
| Digital Detail Enhancement Feature (DDE) | Yes |
| Wide Dynamic Range Feature (WDR) | Yes |
| Stow Safety Feature (SSF) | Yes |
| Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) | Optional: 3-Axis Sensors – Magnetometer, Accelerometer and Gyroscope |
| Integrated Compass | Optional |
| Pitch / Roll / Azimuth Indications | Optional |
| Real-Time Date-Time Stamp | Yes: Simplified, Extended, DTG Formats |
| Digital Video Recorder with Real-Time Stamp | Optional: Comes with Removable 32GB microSD Card |
| Detection Capability: Man (1.7×0.5m) / NATO Target (2.3×2.3m) | 830m / 1130m |
| Hand-Held Capability | Hand-Held + Helmet-Mountable |
| Tripod-Mountable | Yes |
| Automatic/Manual Pixel Masking | Yes |
| Reset to Factory Defaults | Yes |
| External Video Feed Protection | Yes |
| Automatic Power Down Control | User-Configurable: 10 .. 60 minutes of inactivity |
| Accepted Batteries | 4 (four) AA of Any Type: Lithium / Rechargeable |
| Universal Port | Video-Out, Remote Control and External Power (4VDC .. 15VDC) |
| Battery Life on 4x AA | Up to 8 Hours |
| Environmental Protection | Min. IP67, Nitrogen-Purged Housing |
| Dimensions | 112x138x55mm |
| Weight | 455 grams |
| Operating Temperature | -40°C .. +50°C |
| Warranty | 7 Years, Limited |
| Made In Canada | ITAR-Free |
Batteries not included
