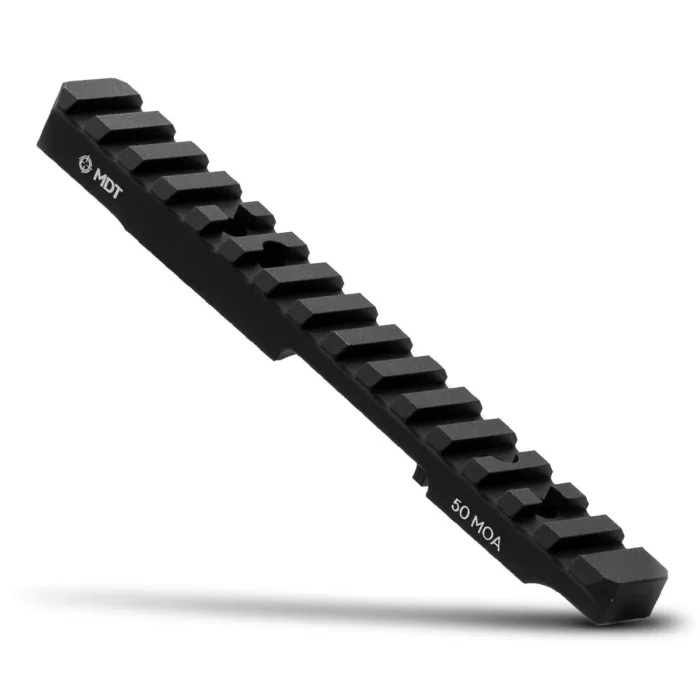

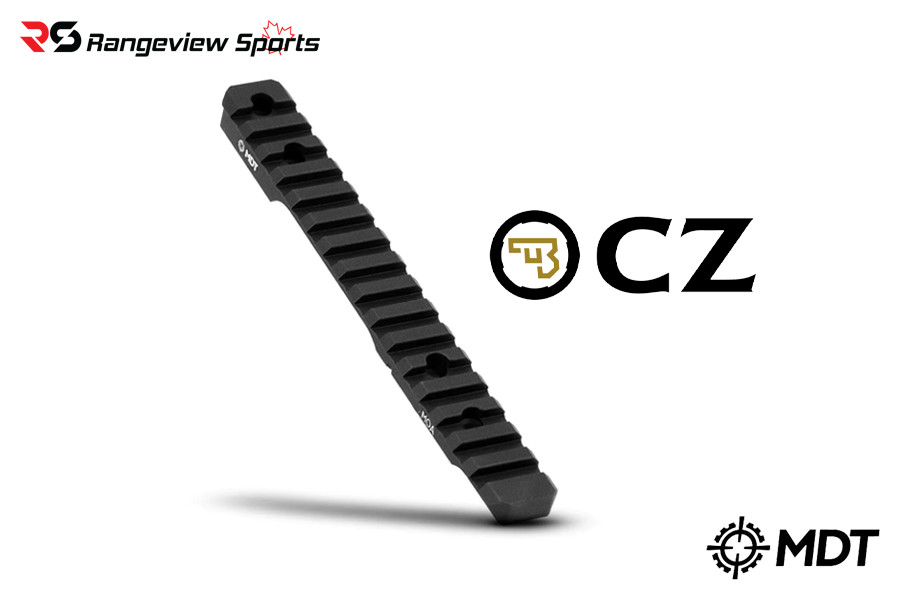

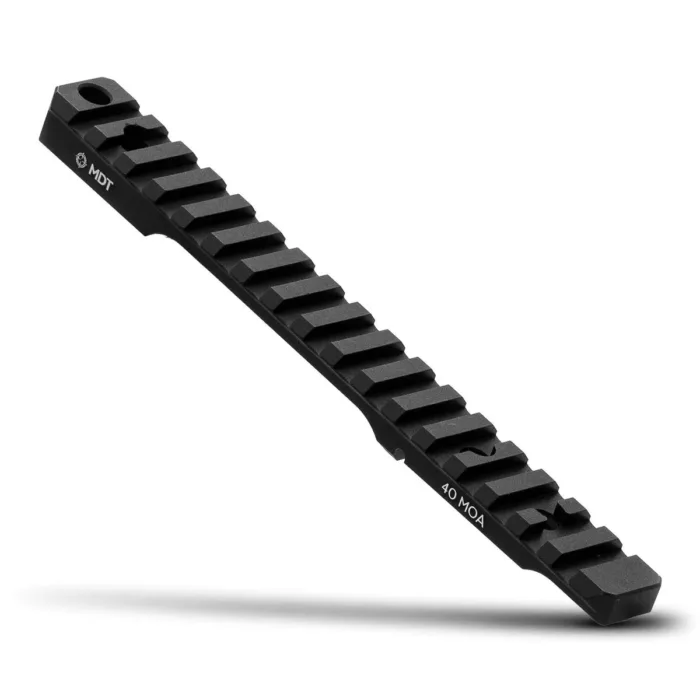

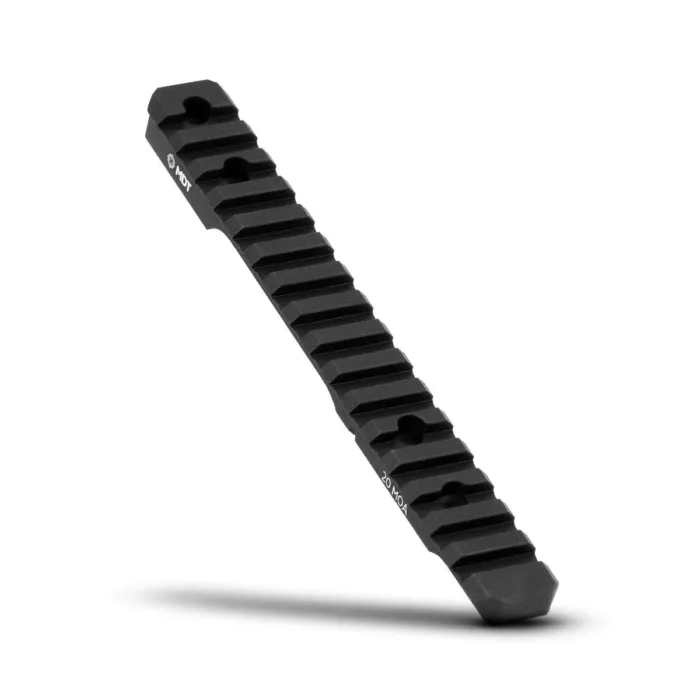

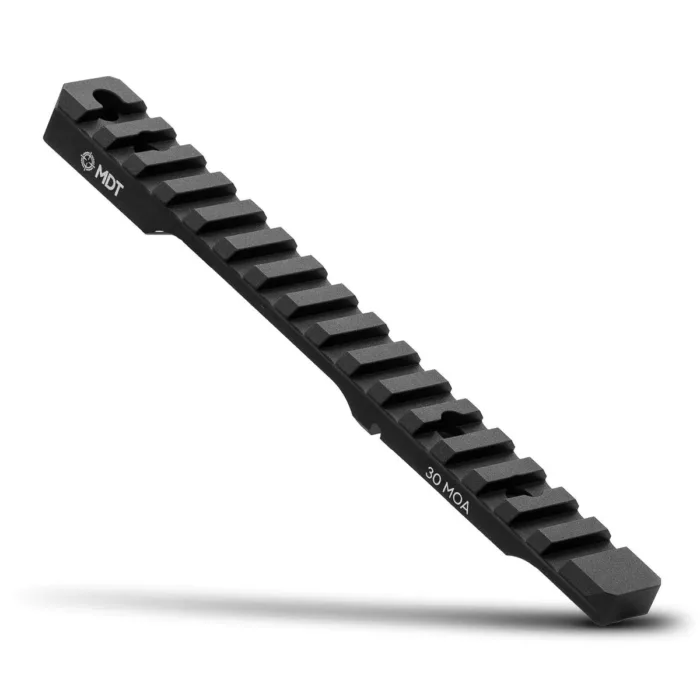

MDT Picatinny Scope Base Rail for CZ in Various Models and MOA
MDT’s Scope Base Picatinny Rails are a precise and reliable solution when it comes to mounting a scope on your bolt action rifle.
DETAILS
MDT’s Scope Base Picatinny Rails are designed to make the mounting of your optics easier. They are machined from 6061-T6 aluminum, then hard-anodized black for a durable finish.
The underside of the rails are profiled to allow the rail to be mounted flush on the receiver and to match the geometry of the ejection port. These rails are designed with a 20 MOA/30 MOA/40 MOA/50 MOA incline providing additional elevation adjustment from your scope*.
A recoil lug has been integrated in the underside rail profile on models where the action’s design allows for this feature.
*Additional elevation adjustment will vary based on your scope specifications.
SPECIFICATIONS
- MIL-STD-1913 & STANAG 4694 spec rails
- CNC machined from 6061-T6 aircraft grade aluminum
- Mil-Spec Type II hard anodized
- 20 MOA/30 MOA/40 MOA/50 MOA rail
- Integrated recoil lug**
- SA & LA options
- Contoured for snag-free operation
HARDWARE INCLUDED
- #6-48 TORX screws (rail base drilled to accommodate #8-40 screws also)
Item Numbers:
CZ 457:
20 MOA: #104488-BLK
30 MOA: #105076-BLK
40 MOA: #106585-BLK
50 MOA: #106587-BLK
CZ 455:
20 MOA: #103565-BLK
30 MOA: #105074-BLK
40 MOA: #106581-BLK
50 MOA: #106583-BLK
CZ 452:
20 MOA: #103566-BLK
30 MOA: #106575-BLK
40 MOA: #106577-BLK
CZ 527:
20 MOA: #106657-BLK
