SomoGear NGAL/LA23 Aiming Laser IR Laser Illuminator – Green
Features:
- Visible Laser + IR Laser + IR illuminator.
- Co-Aligned VIS & IR laser, Zeroable Well.
- Focusable IR illuminator.
- With LA23 Plug Connector.
- Tan Color Aluminum Housing.
- Compatible with All Generations of Night Vision Devices.
The replica SomoGear NGAL Aiming Laser Airsoft Gear is a rugged, ultra-compact and lightweight system, designed to be compatible with all generations of night vision devices.
- Brand: SOMOGEAR
- Fits for Picatinny Rail MIL-STD-1913 (.835″)
- CNC 6063 aircraft aluminum housing with tan color painting
- Compatible with LA23 plug
- Zeroable aiming laser (When mounting on the rail, don’t over torquing the mount screw, or else it may losing zero)
- If you need to activate the Vis-Override function, you need to purchase the SomoBoat switch separately.
- Embossed Fonts Marking
- Co-aligned visible and infrared lasers (at 30 meters distance they are less than 10cm apart)
- Focusable IR Illuminator
- Rotating IR illuminator Focus Ring 288° degrees from spot to flood
- IR illuminator max flood range: ∠5.73° (at 30m distance, the max flood beam diameter ≈ Ø3.0 meter)
- Power levels adjustable based on airsofter requirements (locked blue screw is eye-safe mode, unlock the blue screw not eye-safe, Do not shoot directly to the eyes, take care when use this mode)
- Do not shoot directly to night vision, take care when use high power mode
- All the lens cover just an opaque cover, without diffuser function.
- Battery Life: >6 Hours
- Use 3V CR123A New battery, and pay attention to the positive and negative directions of the batteries
***Because of the different monitor’s color, brightness, the pictures and objects will be slightly different.***
NGAL COMBO TECHNICAL SPECIFICATIONS
Dimensions: 3.6” L x 2.0” W x 1.25”
Weight: 4.8 oz (172g). without battery
Battery: 3V CR123A (not included)
Visible Aim Laser
Output Power Low: ≤0.7mW
Output Power High: ≤4.9mW
IR Aim Laser
Output Power Low: ≤0.1mW
Output Power High: ≤1mW
IR Illuminator
Output Power Low: ≤1mW
Output Power High: ≤4.9mW
Configuration & Functions:
- Tan Housing
- Visible Laser (Green / Red)
- IR Illuminator
- IR Laser
- Co-aligned VIS & IR Laser
Package Include:

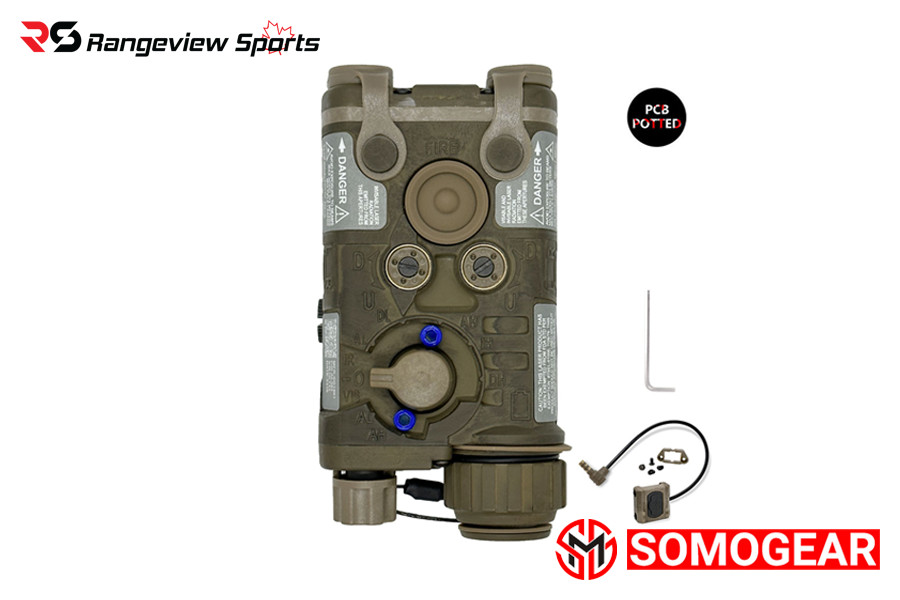

1 x NGAL/LA23 Aiming Laser Device
1 x LA23 Plug Modbutton Style Switch
Remark:
NOT include the battery (due to airmail restricted)
Item Number: NGAL-IRILU-GT-PCB
