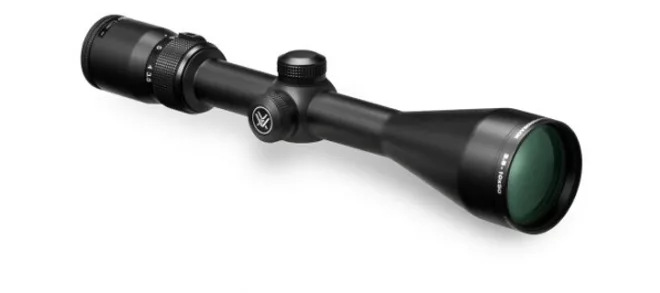

The Diamondback – loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you’d expect to cost quite a bit more-but doesn’t. We can live with that.
Diamondback 3.5-10×50-Dead-Hold BDC (MOA) Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 12.5 | 2.0 | 2.1 | 5.4 | 3.9 | 3.1 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.29 | 1.69 |
Included in the Box
- Removable lens covers
- Lens cloth
Magnification 3.5-10x
Objective Lens Diameter 50 mm
Eye Relief 3.3 inches
Field of View 35.8-13.5 ft/100 yds
Tube Size 1 inch
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel Per Rotation 15 MOA
Max Elevation Adjustment 65 MOA
Max Windage Adjustment 65 MOA
Parallax Setting 100 yards
Length 12.5 inches
Weight 16.2 oz
