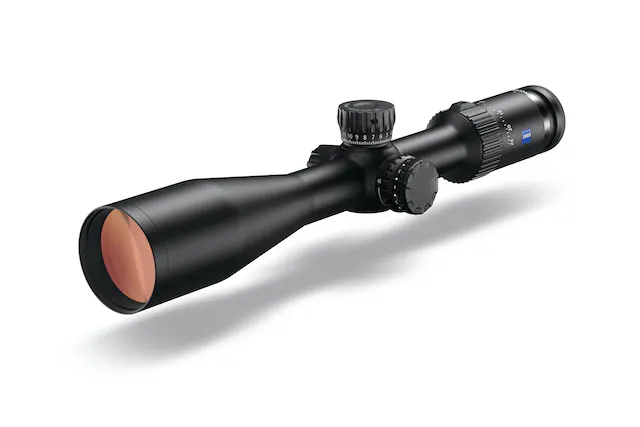

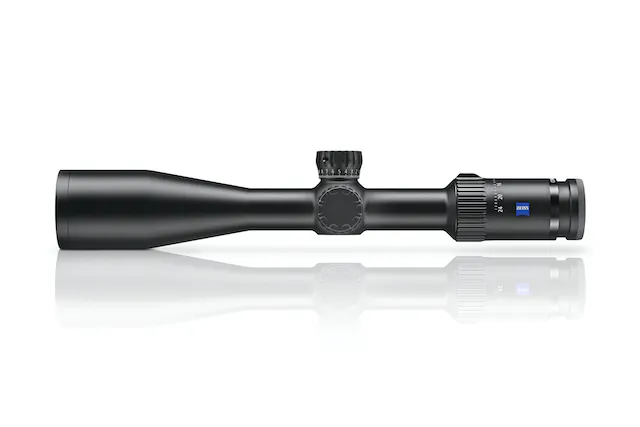

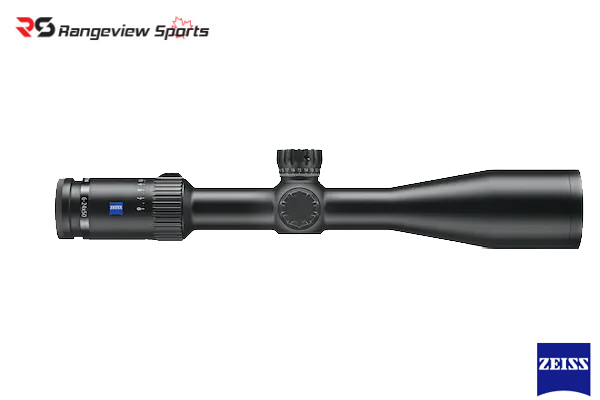

Zeiss Conquest V4 6-24x50mm Rifle Scope, SFP 30mm Tube Illuminated ZMOAi-1
Made in Japan
The Conquest V4 riflescopes are for hunters and shooters whose lifestyle and adventures involve traditional and long-range hunting, as well as shooting and long-range shooting. They were designed as a lightweight, high-performance product line for various demanding hunting and shooting applications. They are, by any standard, ‘best-in-class’.
Offering a maximum magnfication of 24×, this model represents the most powerful option from the Conquest V4 family. With side parallax compensation, external elevation turret with Ballistic Stop, MOA-based smart reticles, and available illumination, this riflescope is the most popular from ZEISS for longer-range hunting and precision shooting. And so it should be, as it also boasts a whopping 80 MOA of elevation travel. The External Locking Windage Turret option is an industry first-in-class, and represents an excellent choice for the long-range hunting and shooting enthusiast. Now available with five MOA-based, illuminated, second focal plane, smart reticle options: ZBR-1, ZMOA-1, ZMOAi-20, ZMOAi-T20, and ZBi. For those who prefer the time-tested duplex style reticle, this model is also now available with the #60 reticle with an illuminated center red dot. The bright optics, combined features and overall performance from this riflescope has proven unmatched from the competition. That’s what makes it so popular.
Performance
| Magnification | 6 – 24 x |
| Effective lens diameter | 44.9 – 50.0 mm |
| Light transmission | 90% |
| Exit pupil diameter | 7.5 – 2.1 mm |
| Twilight factor | 16.4 – 34.6 |
| Field of view at 100 m (yds) | 6.3 – 1.6 m (19 – 5 ft) |
| Objective viewing angle | 3.6° – 0.9° |
| Diopter adjustment range | + 2.0 | − 3.0 dpt |
| Eye relief | 90 mm (3.54 “) |
| Parallax setting | 9.1 m – ∞ (10 yds – ∞) |
| Adjustment range at 100 m | 230 × 175 cm |
| Adjustment per click at 100 m | 1/4 MoA (0.7 cm /100 m) |
| Centre tube diameter | 30 mm |
| Eyepiece tube diameter | 44 mm |
| Objective tube diameter | 56 mm |
Features
| LotuTec | Nitrogen filled | + | + |
| Water resistance | 400 mbar |
Physical
| Operating temperature | − 25°C | + 50°C (− 13°F | + 122°F) |
| Length | 368 mm (14.5 “) |
| Weight (without inner rail) | 690 g (24.3 oz) |
| Weight (with inner rail) | – |
Item Number: 522955-9993-080
